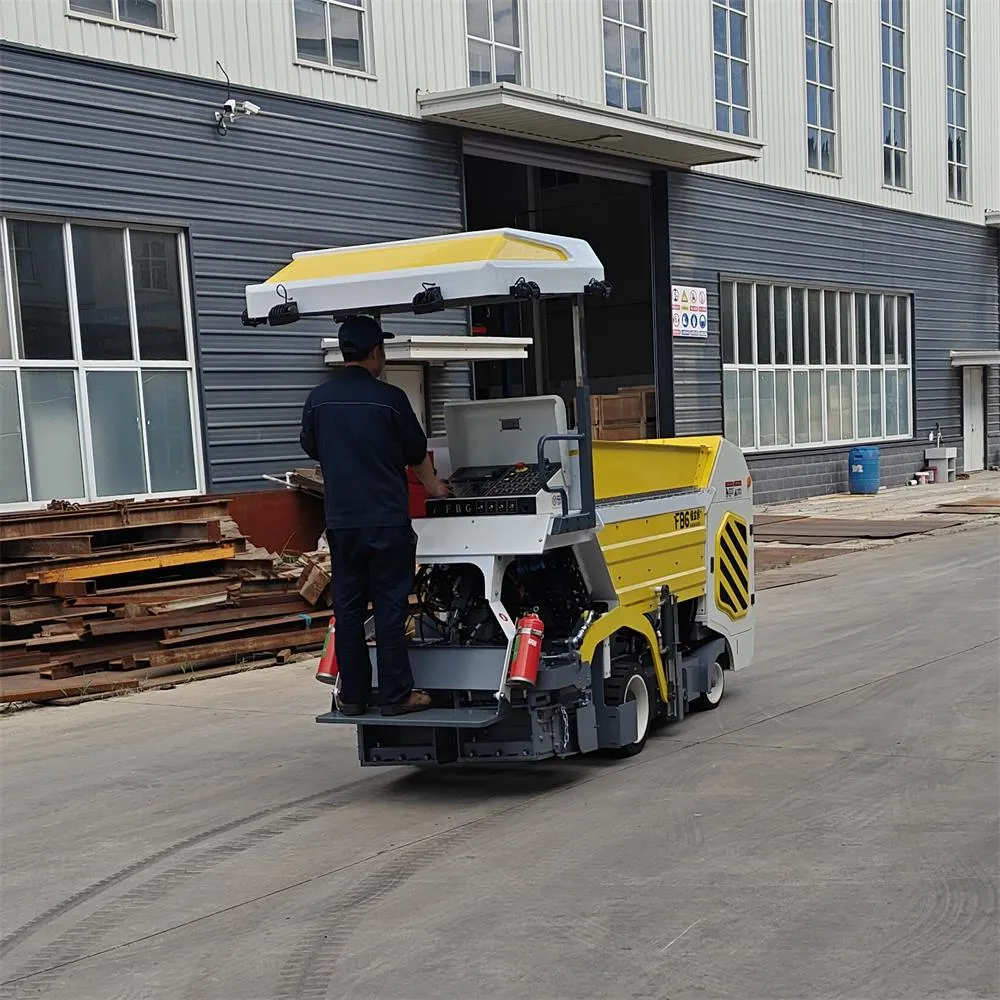

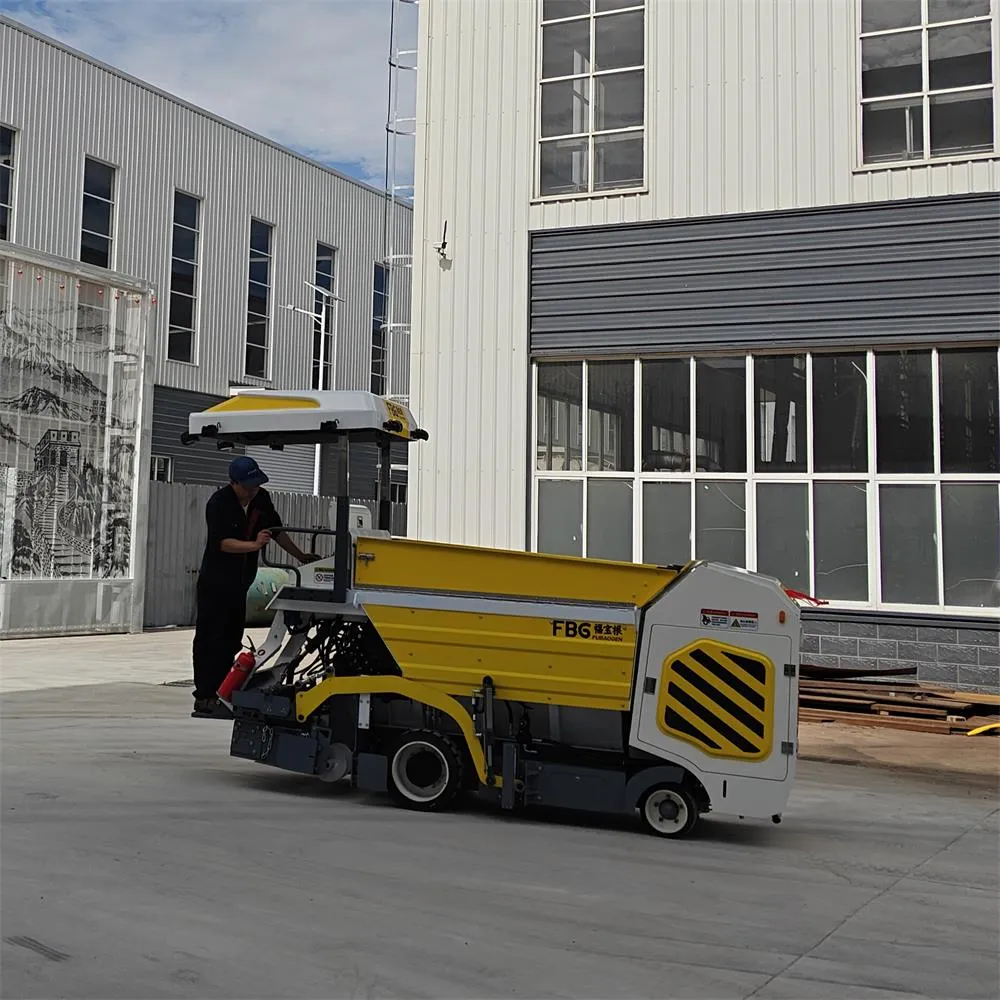

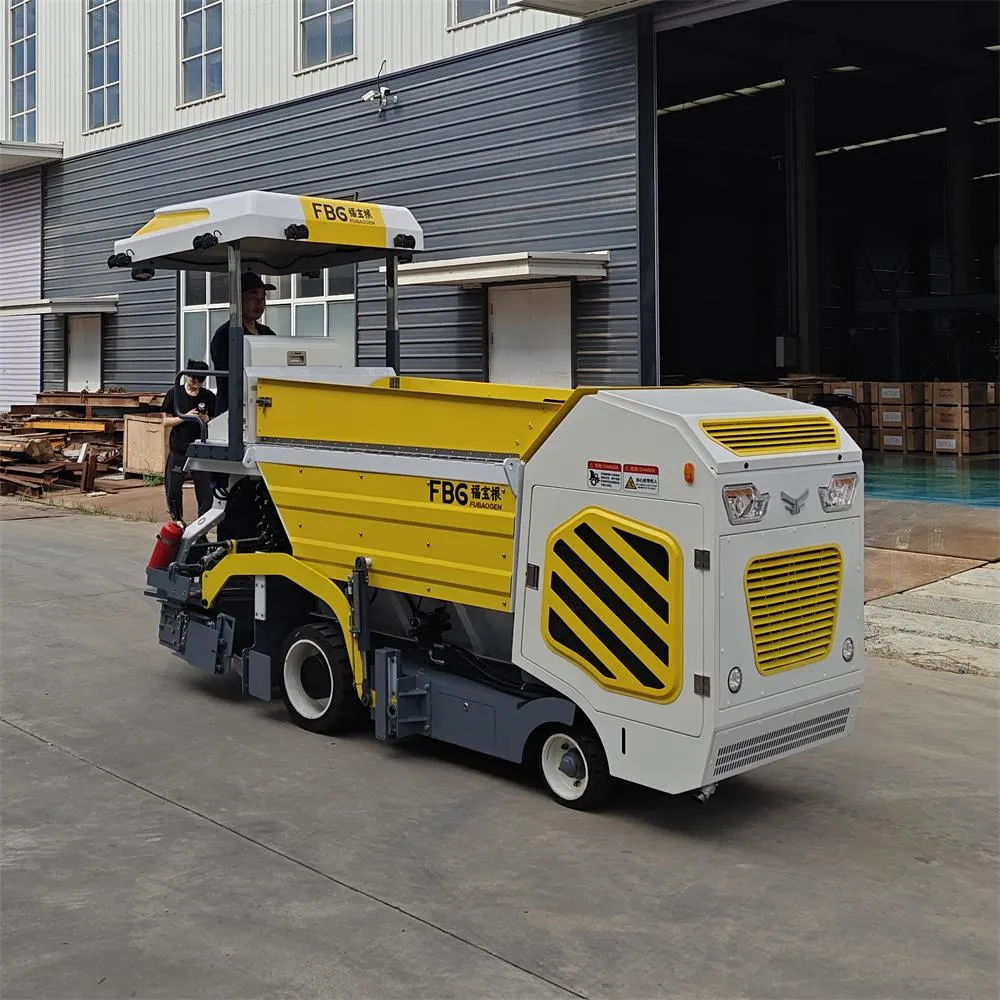

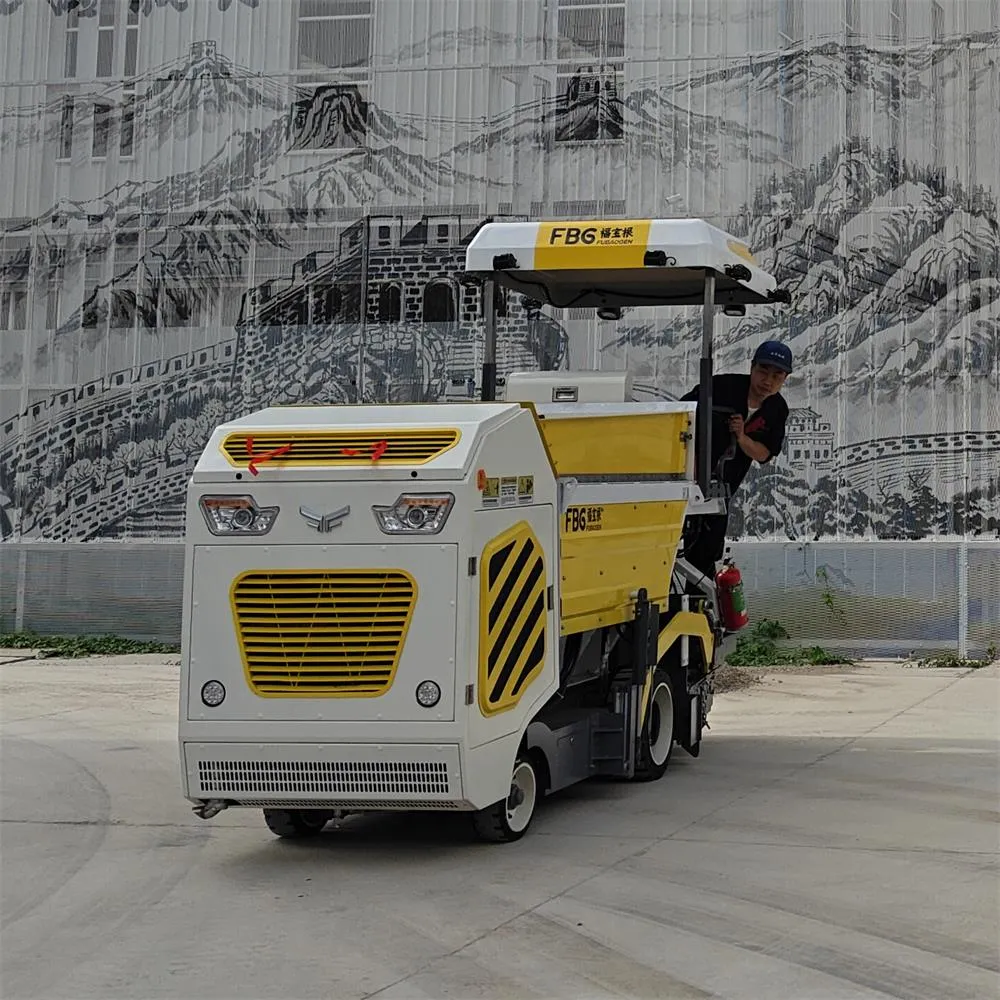

FBGAP2000-L Mini Wheel Asphalt Paver
Product Overview
The FBGAP2000-L Mini Wheel Asphalt Paver is a compact wheel-type asphalt paving machine designed for road maintenance, municipal construction and small asphalt paving projects. It is suitable for jobsites that require flexible movement, convenient operation and practical paving performance.
This model is powered by a Kubota engine and features a 1.2m³ hopper capacity, making it suitable for contractors handling small road repair, sidewalk paving, community roads and rural paving applications.
Product Details
The FBGAP2000-L uses a wheel walking system, which is suitable for relatively flat construction sites where flexible movement and easy transfer are important. Its compact structure helps operators work in narrow or limited spaces, while the 1–5m/min working speed allows controlled paving performance.
According to the uploaded parameter sheet, this model is listed with a 1500mm maximum paving width. Since the model name includes “2000”, it is recommended to confirm the final paving width before publishing the product page or brochure.
Key Applications
Municipal road repair
Sidewalk and narrow road paving
Community and residential roads
Factory roads and parking areas
Rural road paving
Small asphalt construction projects
Key Selling Points
Wheel-type compact asphalt paver
Kubota engine with 17.1kW power
Flexible movement on flat jobsites
1.2m³ hopper capacity
Suitable for small road maintenance projects
Practical machine size for limited construction areas
| Item | Specification |
|---|---|
| Model | FBGAP2000-L |
| Maximum Paving Width | 1500 mm |
| Hopper Capacity | 1.2 m³ |
| Basic Paving Width | 800 mm |
| Maximum Paving Thickness | 100 mm |
| Work Speed | 1–5 m/min |
| Travel Speed | 1–13 km/h |
| Engine Brand | Kubota |
| Engine Power | 17.1 kW |
| Emission Standard | China National IV |
| Walking Style | Wheel |
| Weight | 2.6 T |
| Overall Dimensions | 3500 × 1100 × 1580 mm |
