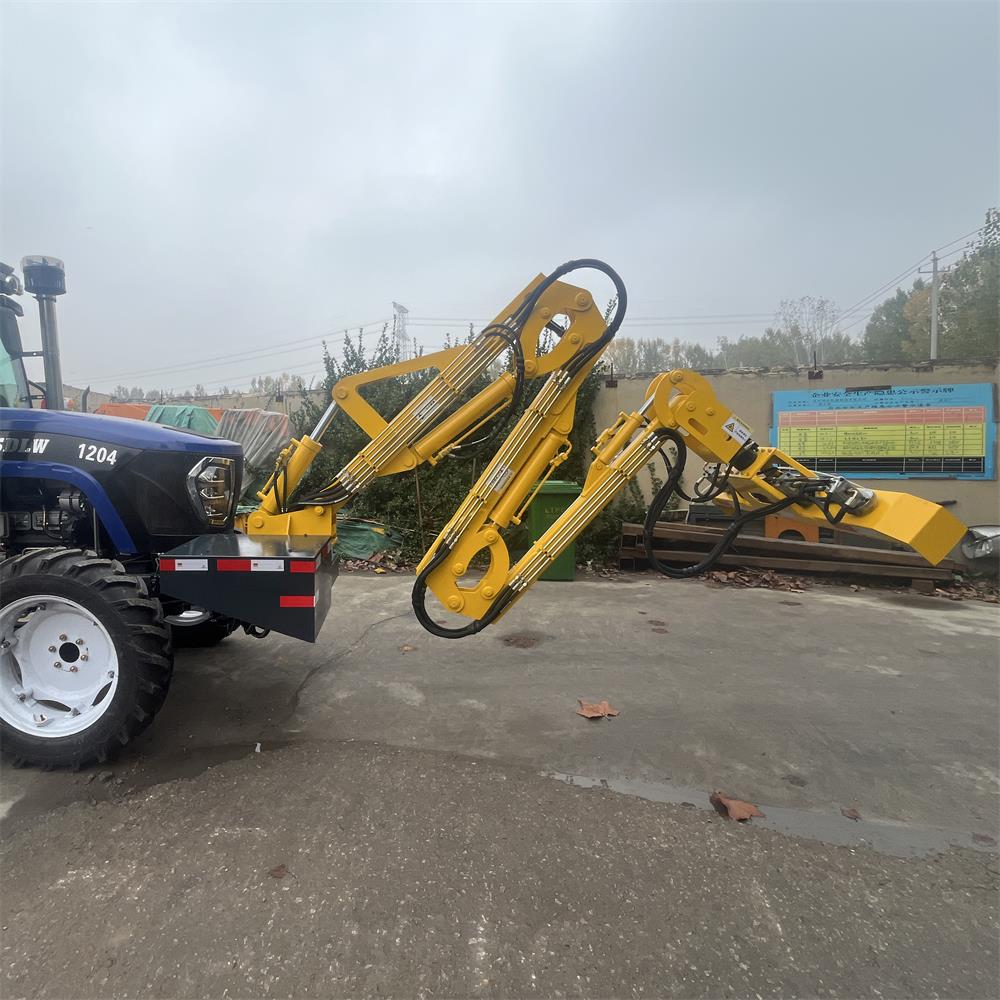

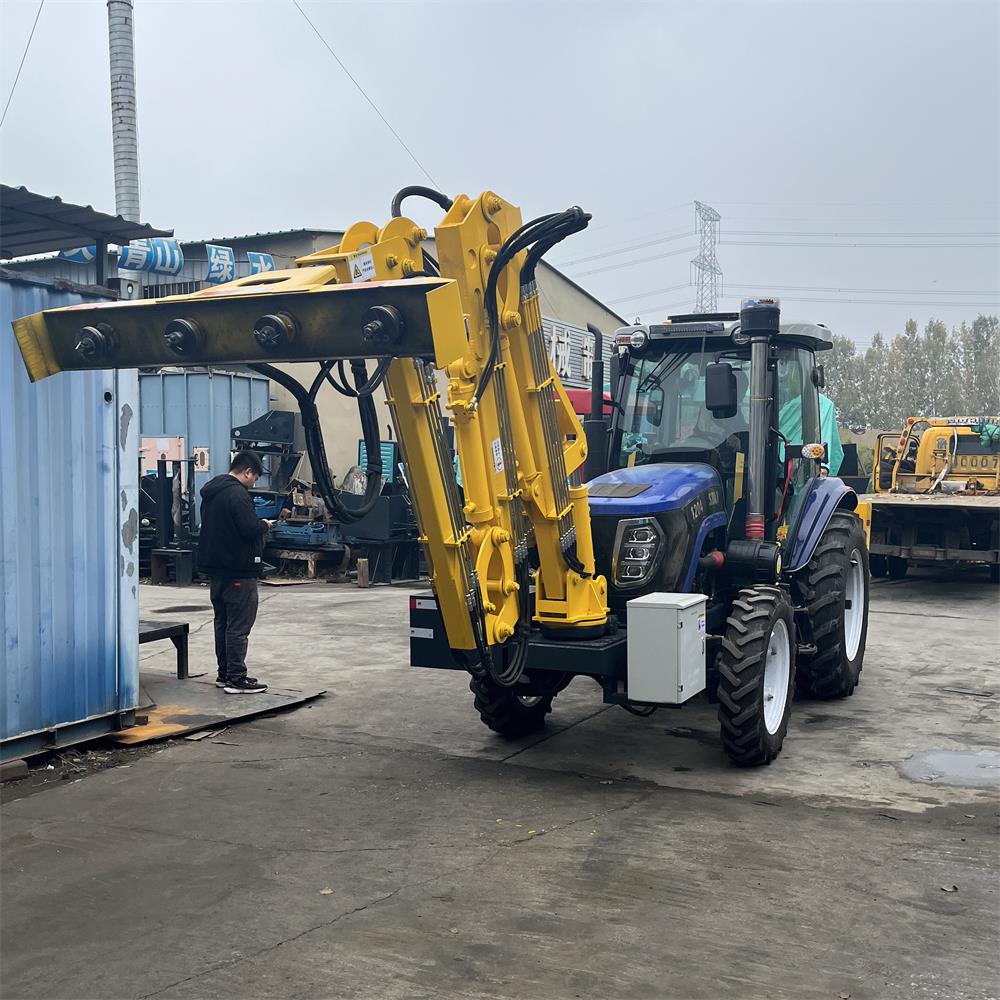

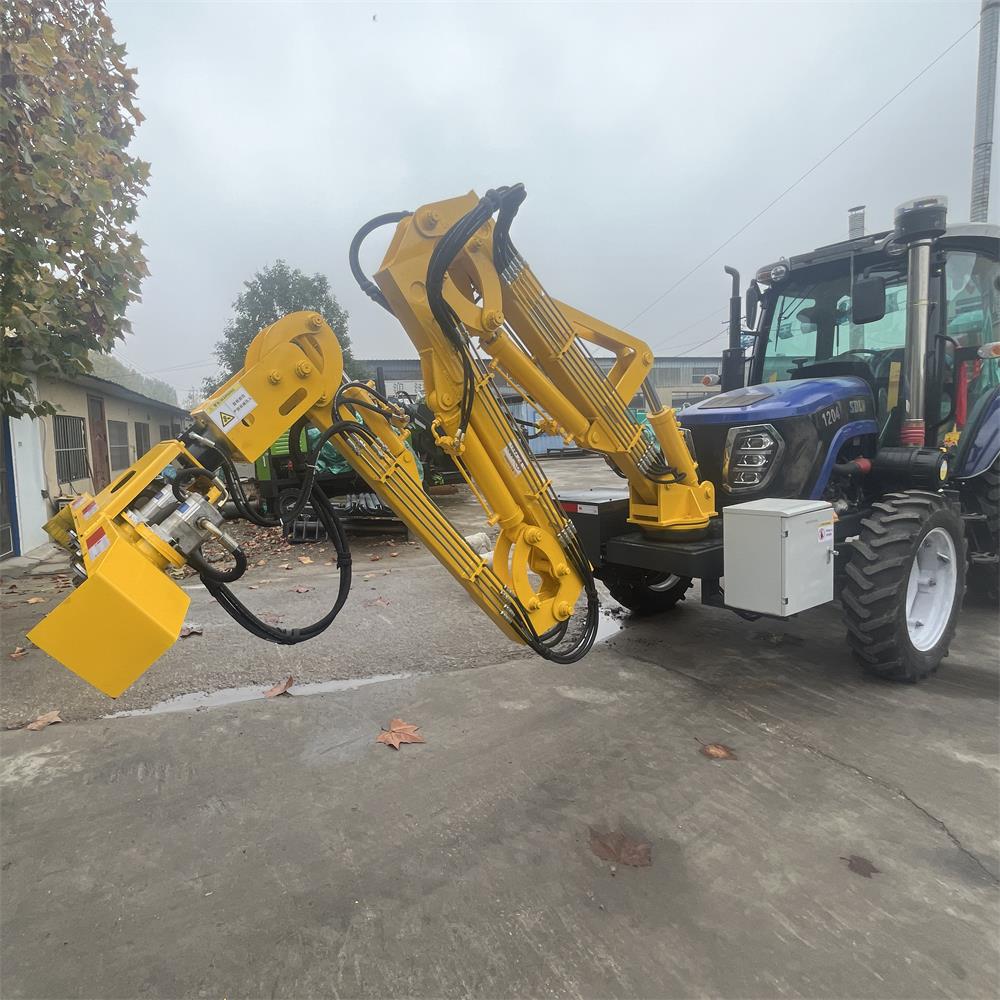

6m Compact Folding Arm Hedge Trimming Machine
Product Overview
The 6m Compact Folding Arm Hedge Trimming Machine is designed for municipal greening, roadside hedge trimming, highway maintenance and landscape management. It provides a 6m trimming reach and 6m maximum trimming height while keeping a relatively compact folded size, making it suitable for users who need both strong working range and convenient machine transfer.
This model is suitable for road maintenance teams, landscaping contractors, municipal service companies and large property maintenance projects.
Product Details
This hedge trimming machine adopts a three-section, three-folding arm structure. It supports a maximum trimming distance of 6m, downward trimming distance of 0–5m and maximum trimming height of 6m. The machine is suitable for trimming road green belts, tall hedges, roadside vegetation and landscaping areas that require extended working reach.
The cutter head is driven by a hydraulic high-speed motor, with blade speed reaching 2400r/min or above. The 2m trimming width helps improve efficiency in continuous trimming work. The optional circular saw blade cutter head can be selected according to vegetation type and cutting requirements.
With manual control box operation, wireless remote control, 360° chassis rotation and 360° cutter head rotation, the machine gives operators flexible control in different jobsite conditions. Compared with the standard 6m model, this version has a more compact folded size, making it easier to transport and store.
Key Applications
Roadside green belt trimming
Municipal hedge maintenance
Highway vegetation management
Park and garden trimming
Landscape maintenance projects
Community and industrial area greening
Key Selling Points
6m maximum trimming reach
Compact folded size for easier transportation
37kW engine power
Hydraulic high-speed cutter motor
2m trimming width
360° chassis and cutter head rotation
Manual operation and wireless remote control
Suitable for road, municipal and landscaping maintenance
| Item | Specification |
|---|---|
| Product Type | Hedge Trimming Machine |
| Arm Structure | Three-section, three-folding arm, 6m |
| Engine | Model 490 |
| Engine Power | 37 kW |
| Machine Weight | 1.9 tons |
| Overall Dimensions After Folding | 4430 × 1430 × 2130 mm |
| Maximum Trimming Distance | 6 m |
| Downward Trimming Distance | 0–5 m |
| Maximum Trimming Height | 6 m |
| Working Speed | ≤5 km/h |
| Cutter Head Drive Mode | Hydraulic high-speed motor |
| Blade Speed | ≥2400 r/min |
| Cutter Head Trimming Width | 2 m |
| Optional Cutter Head Type | Circular saw blade cutter head |
| Hydraulic System | Displacement 32/10 hydraulic gear pump with electromagnetic hydraulic valve |
| Control System | Manual control box and wireless remote control |
| Chassis Rotation Angle | 360° |
| Cutter Head Rotation Angle | 360° |
| Counterweight Box Capacity | 0.2 m³ |
| Diesel Tank Capacity | 20 L, subject to the actual engine configuration |
| Hydraulic Oil Tank Capacity | 140 L |
