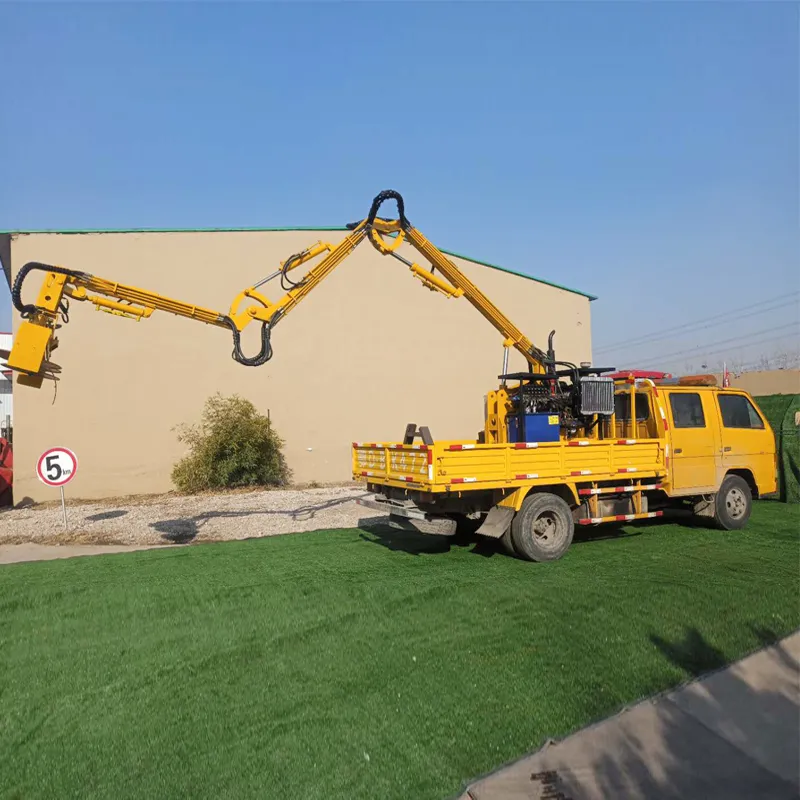

6m Folding Arm Hedge Trimming Machine
Product Overview
The 6m Folding Arm Hedge Trimming Machine is designed for roadside greening, municipal hedge maintenance, highway vegetation trimming and large-area landscaping projects. With a three-section folding arm structure, 6m maximum trimming distance and hydraulic high-speed motor drive, this model provides stronger reach and trimming capability than compact 4.5m models.
It is suitable for contractors, municipal maintenance teams and landscaping service providers that need efficient trimming equipment for taller, wider or more complex roadside vegetation.
Product Details
This model uses a three-section, three-folding arm structure with a maximum trimming distance of 6m, maximum trimming height of 6m and downward trimming distance of 0–5m. The large working range helps operators handle roadside hedges, green belts, sloped vegetation and high-position trimming tasks with fewer manual operations.
The cutter head is driven by a hydraulic high-speed motor, and the blade speed can reach 2400r/min or above. The standard cutter head trimming width is 2m, improving trimming efficiency for long roadside and municipal greening sections.
The machine supports manual control box operation and wireless remote control. With 360° chassis rotation and 360° cutter head rotation, it can adapt to different trimming angles and landscape shapes. The 0.2m³ counterweight box helps improve working stability during extended-arm operation.
Key Applications
Highway green belt trimming
Municipal road hedge maintenance
Roadside vegetation cutting
Park and landscape maintenance
Large community greening projects
Garden and public facility maintenance
Key Selling Points
6m maximum trimming distance
Three-section, three-folding arm structure
Hydraulic high-speed motor cutter drive
2m cutter head trimming width
Blade speed ≥2400r/min
360° chassis and cutter head rotation
Manual control box + wireless remote control
Suitable for municipal and roadside maintenance projects
| Item | Specification |
|---|---|
| Product Type | Hedge Trimming Machine |
| Arm Structure | Three-section, three-folding arm, 6m |
| Engine | Model 490 |
| Engine Power | 37 kW |
| Machine Weight | 1.9 tons |
| Overall Dimensions After Folding | 4500 × 1500 × 2200 mm |
| Maximum Trimming Distance | 6 m |
| Downward Trimming Distance | 0–5 m |
| Maximum Trimming Height | 6 m |
| Working Speed | ≤5 km/h |
| Cutter Head Drive Mode | Hydraulic high-speed motor |
| Blade Speed | ≥2400 r/min |
| Cutter Head Trimming Width | 2 m |
| Optional Cutter Head Type | Circular saw blade cutter head |
| Hydraulic System | Displacement 32/10 hydraulic gear pump with electromagnetic hydraulic valve |
| Control System | Manual control box and wireless remote control |
| Chassis Rotation Angle | 360° |
| Cutter Head Rotation Angle | 360° |
| Counterweight Box Capacity | 0.2 m³ |
| Diesel Tank Capacity | 20 L, subject to the actual engine configuration |
| Hydraulic Oil Tank Capacity | 140 L |
