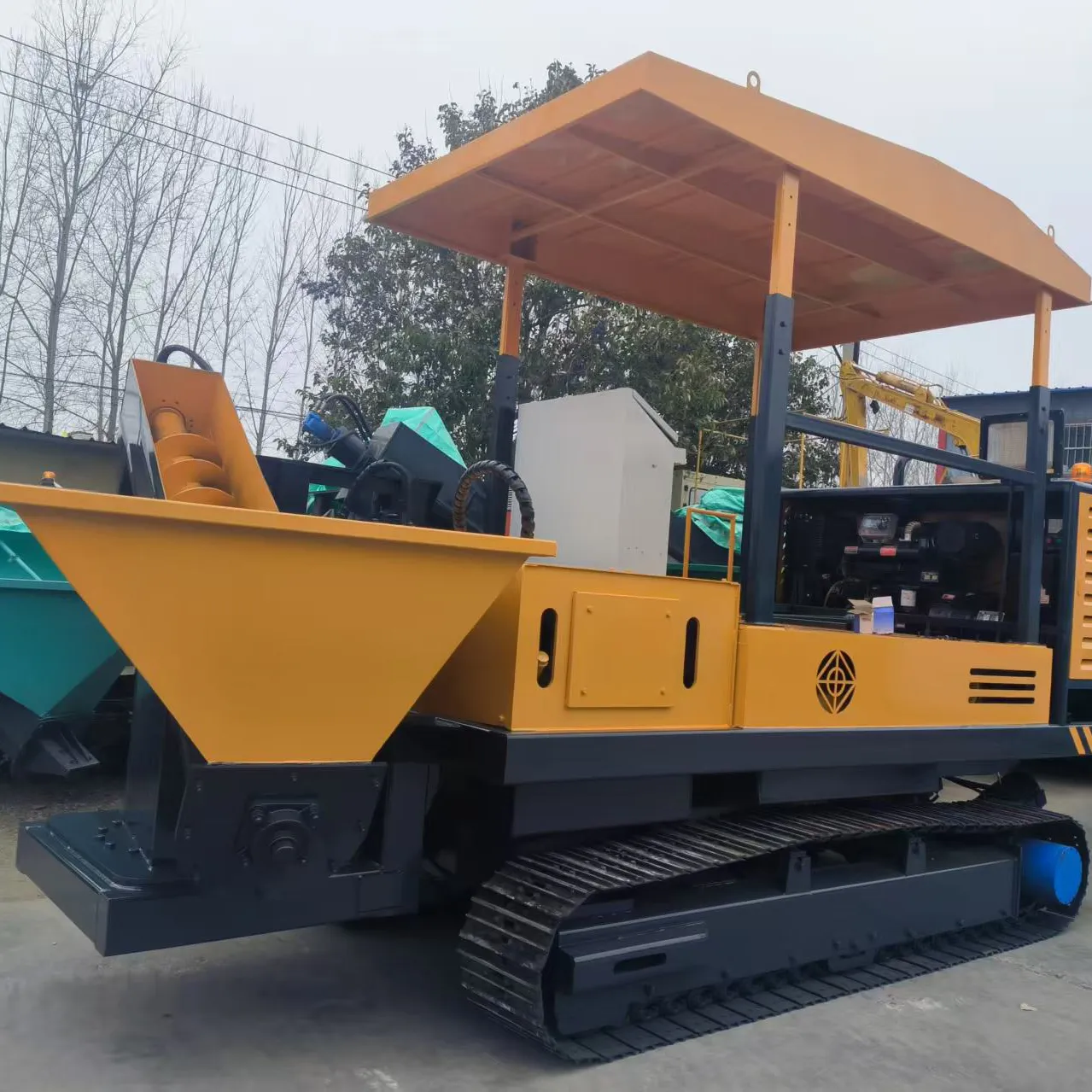

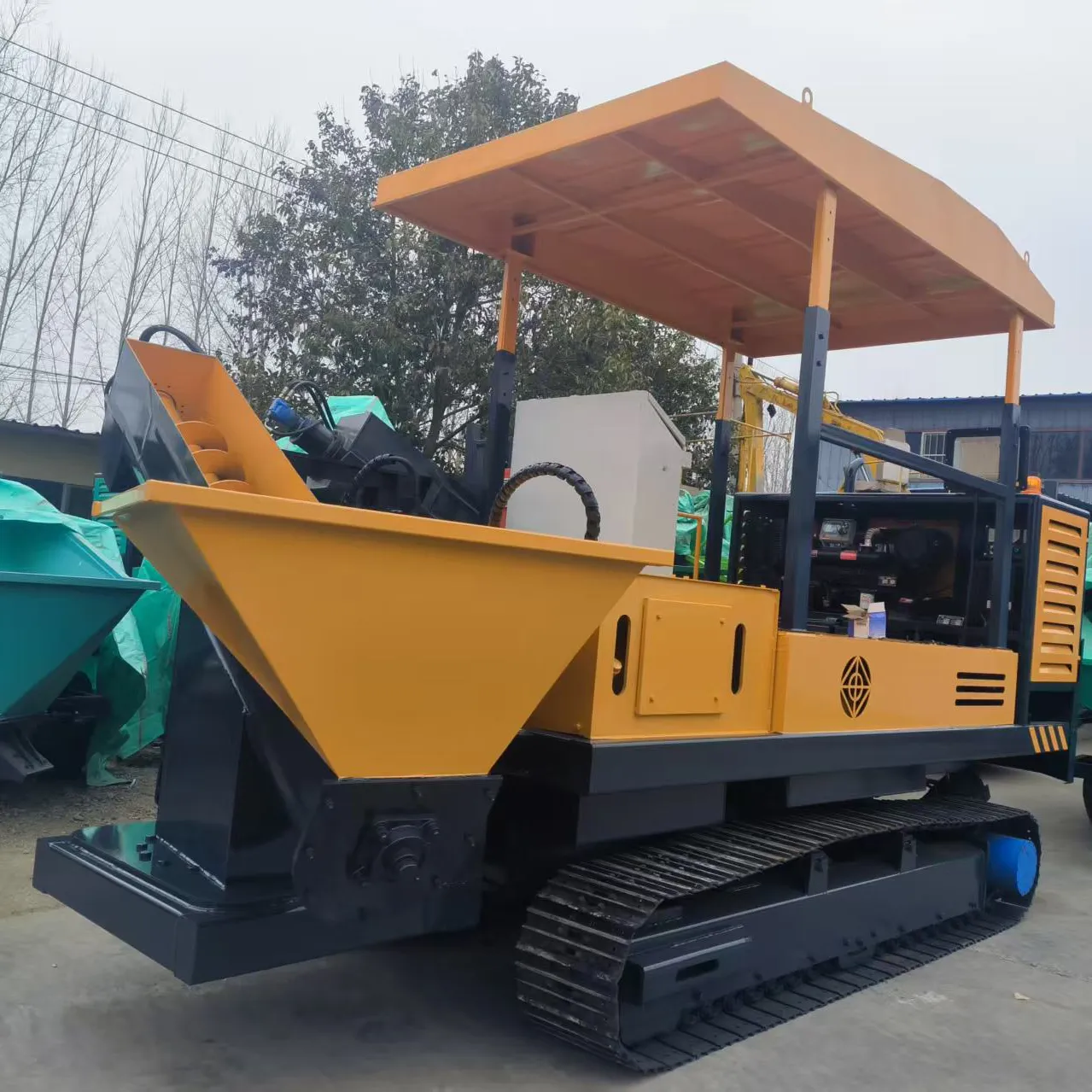

RWSP100G Steel Crawler Concrete Slipform Paver
Product Overview
The RWSP100G Steel Crawler Concrete Slipform Machine is a heavy-duty concrete slipform machine designed for larger and more demanding road construction projects. With a steel crawler chassis, 100kW generator, 15-ton machine weight and PLC intelligent control panel, this model is suitable for drainage ditches, road shoulders, curbs and customized concrete structures.
It is designed for contractors, municipal construction companies and highway engineering teams requiring stronger traction, stable forming performance and larger concrete profile capacity.
Product Details
The RWSP100G adopts a dual motor dual-control dual-drive system and steel crawler chassis. Compared with rubber crawler models, the steel crawler design is better suited for heavy-duty road construction environments where stronger chassis support is required.
The machine is equipped with a standard 1-to-8 adjustable-speed high-frequency vibrator system, mixed mechanical vibrators, detachable hydraulic screw feeder and dual leveling instrument control. The machine can form drainage ditches with an inner size up to 800mm × 800mm, and can also be used for curbs, road shoulders and other concrete profiles according to mold design.
Key Applications
Concrete drainage ditch forming
Highway road shoulder construction
Concrete curb and gutter forming
Municipal road construction
Large rural road infrastructure projects
Customized concrete profile construction
Key Selling Points
Heavy-duty steel crawler slipform machine
100kW generator
15-ton machine body for stable operation
PLC intelligent control panel
Adjustable-speed high-frequency vibrator system
Detachable hydraulic screw feeder
Suitable for drainage ditch inner size up to 800mm × 800mm
Supports various curb and road shoulder forming applications
| Item | Specification |
|---|---|
| Model | RWSP100G |
| Driving Mode | Dual motor, dual-control, dual-drive |
| Machine Weight | 15 tons |
| Forming Method | Vibratory forming |
| Vibrating Rod Type | Adjustable-speed high-frequency vibrating rod, standard 1-to-8 system; mixed mechanical vibrating rods |
| Canopy | Removable frame + soft fabric canopy |
| Working Speed | 0.5–3 m/min |
| Control Mode | Manual control box + wireless remote control |
| Feeding Method | Detachable hydraulic screw feeder |
| Working Mode | Dual leveling instrument control |
| Generator | 100 kW generator |
| Engine Starting Method | PLC intelligent control panel |
| Water Tank Capacity | 300 L |
| Diesel Tank Capacity | 60 L |
| Crawler Type | Steel crawler chassis |
| Driving Motor | 4 kW × 2 |
| Reducer Type | Crawler direct-connected planetary reducer |
| Overall Dimensions | 5460 × 3130 × 2500 mm, excluding canopy height |
| Applicable Material | Concrete |
| Applicable Forming Size | Drainage ditch inner size within 800 × 800 mm; suitable for various sizes of curbs and road shoulders |
| Hopper Capacity | 1.2–1.5 m³ |
| Speed Regulation | Variable frequency stepless speed control |
| Engine | 6105 turbocharged six-cylinder engine |
| Hydraulic Drive Mode | Oil pump motor directly drives oil pump, controlled by hydraulic solenoid valve |
| Oil Pump Motor | 15 kW direct-connected dedicated oil pump motor |
| Machine Cleaning | Equipped with high-pressure cleaning pump |
| Hydraulic Oil Tank Capacity | 80 L |
| Crawler Chassis Size | 3500 × 2500 mm, track width 400 mm |
