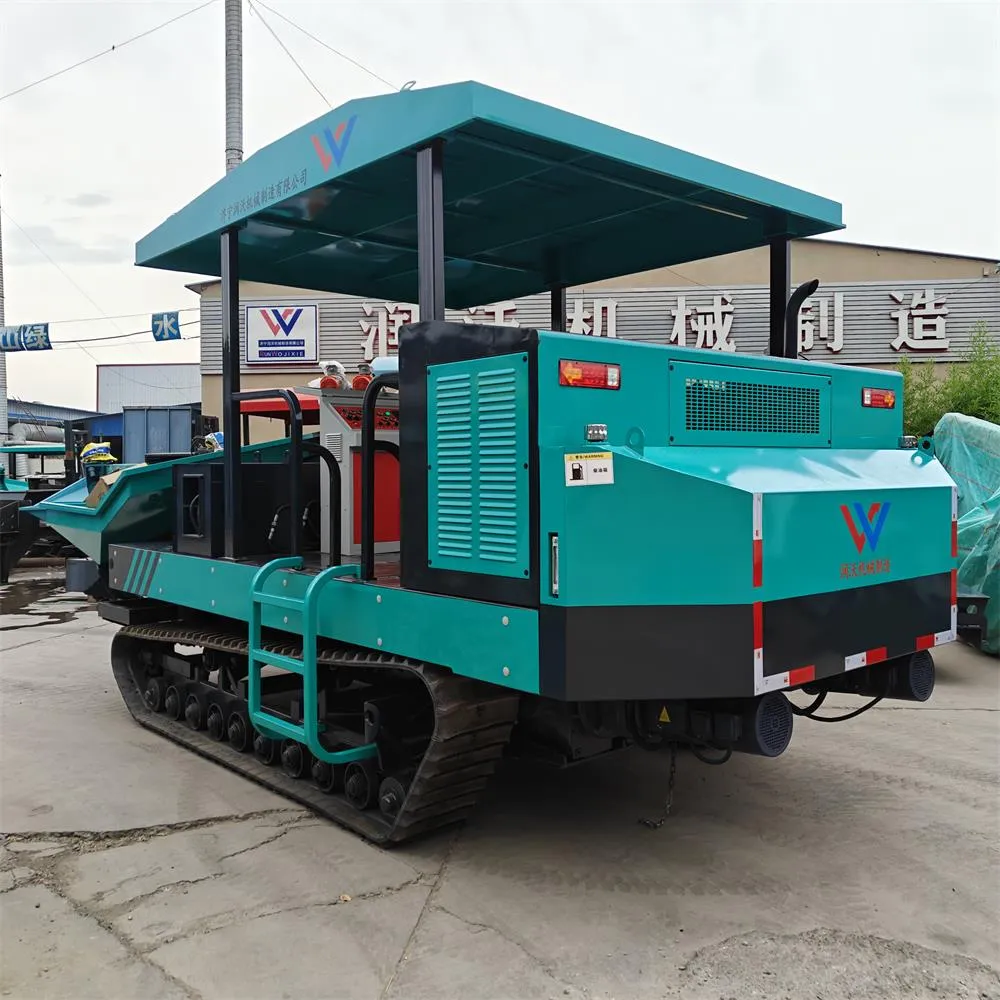

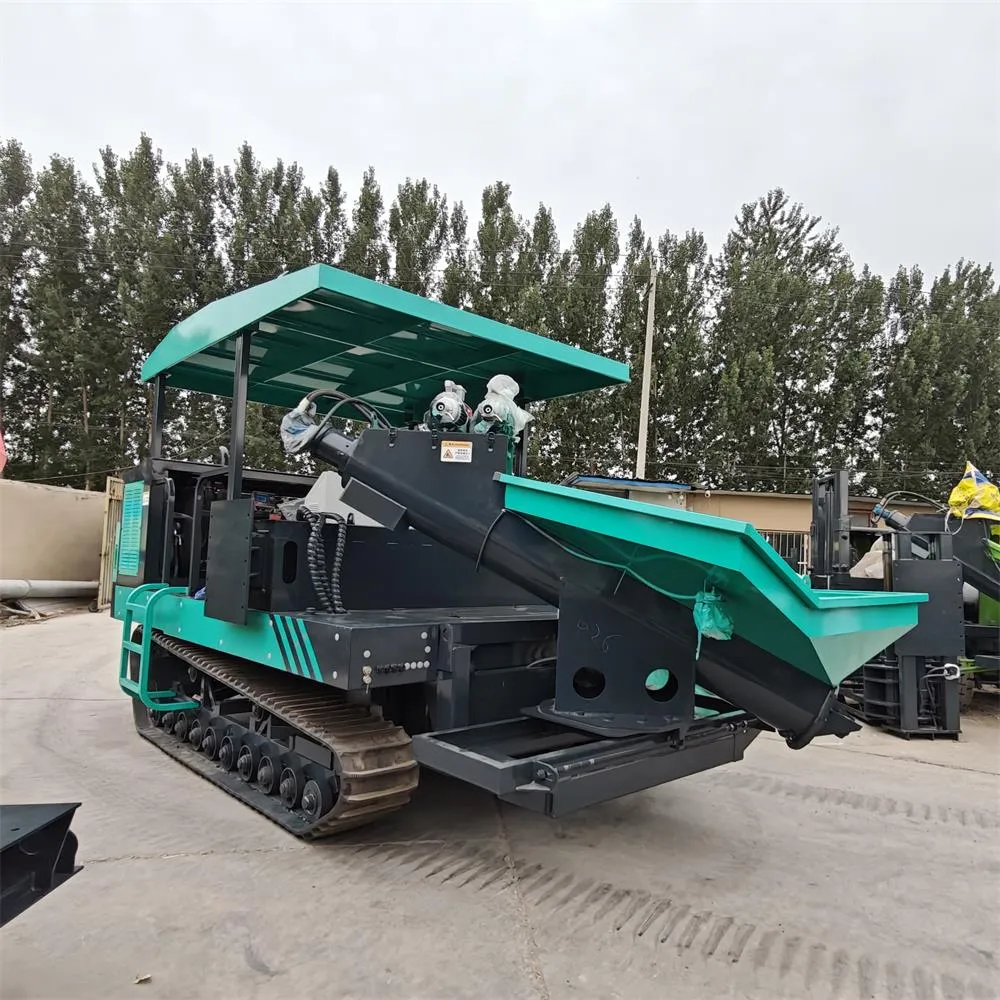

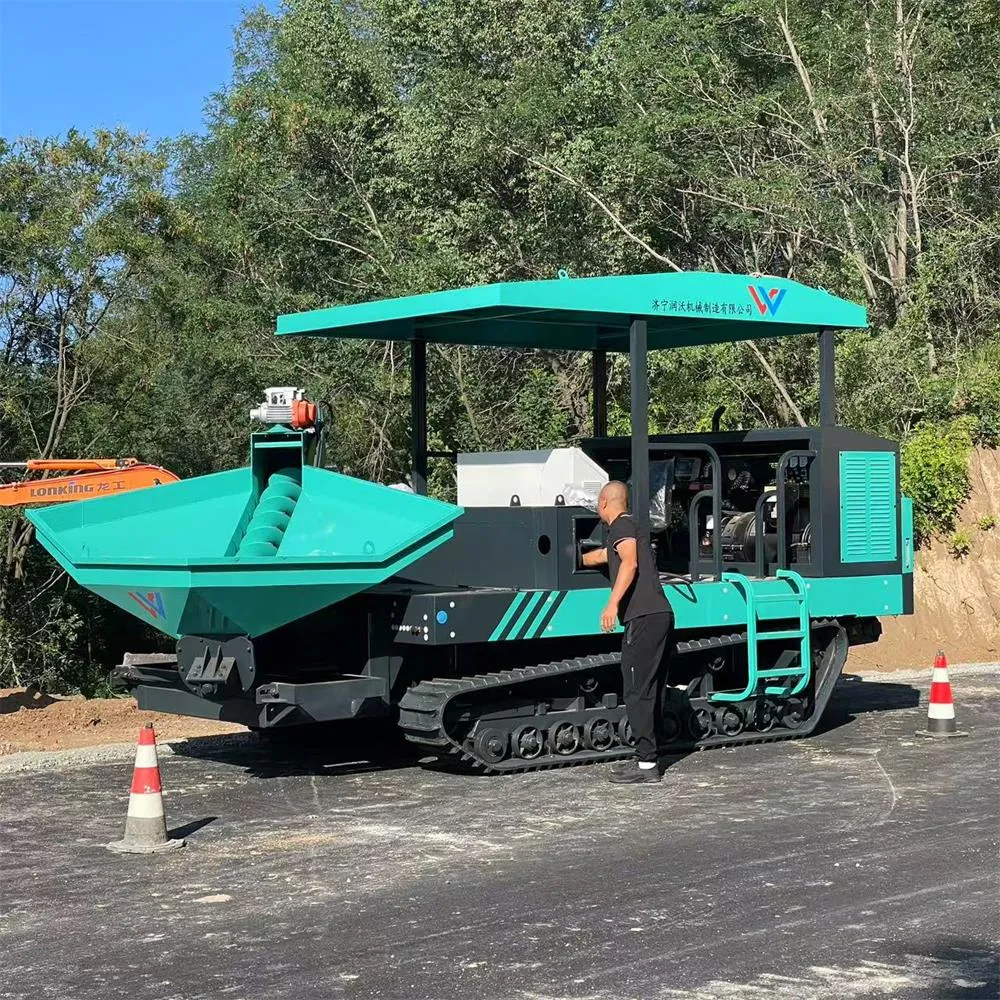

RWSP50CK Upgraded Rubber Crawler Concrete Slipform Paver
Product Overview
The RWSP50CK Upgraded Rubber Crawler Concrete Slipform Machine is an enlarged and upgraded crawler-type model designed for larger concrete forming requirements. With an 8.4-ton machine weight, wider crawler chassis and enhanced vibrator configuration, it is suitable for contractors who need stronger stability and larger forming capacity than standard crawler slipform machines.
This model can be used for concrete curbs, roadside shoulders, drainage ditches and customized concrete profiles. It is suitable for municipal construction, highway engineering, rural infrastructure projects and road maintenance applications.
Product Details
The RWSP50CK is equipped with a dual motor dual-control dual-drive system, 50kW generator, hydraulic screw feeder and dual leveling instrument automatic control. The upgraded crawler chassis uses wider rubber tracks, providing improved ground support and operation stability.
The machine supports concrete forming up to 800mm × 800mm, and drainage ditch inner size up to 600mm × 600mm, subject to actual project drawings and mold design. The vibrator system includes 1-to-6 high-frequency vibrators plus 2 groups of ordinary vibrators, helping improve concrete compactness during continuous slipforming.
Key Applications

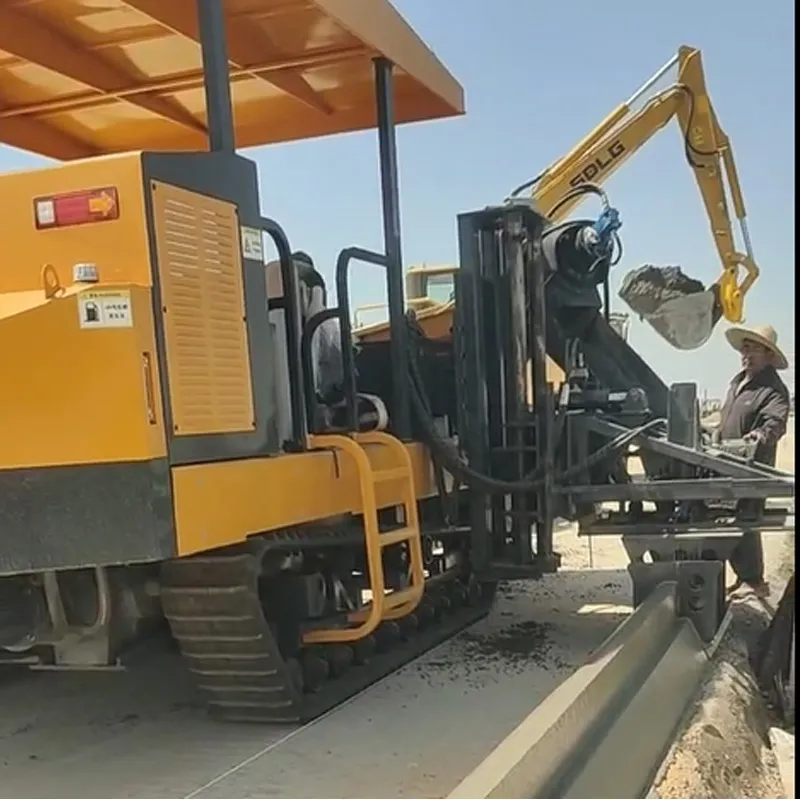

Large concrete curb forming

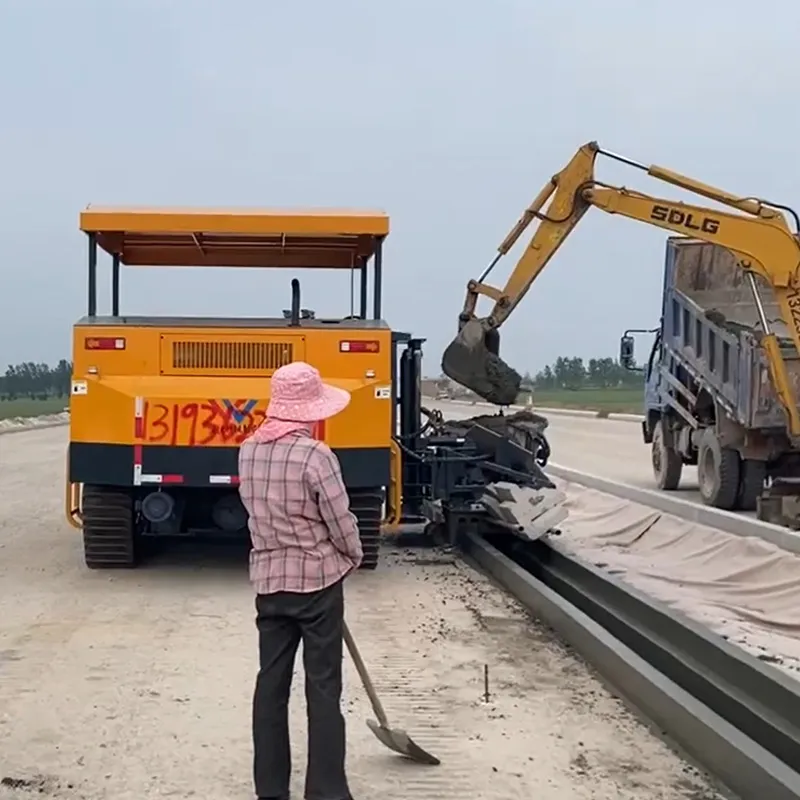

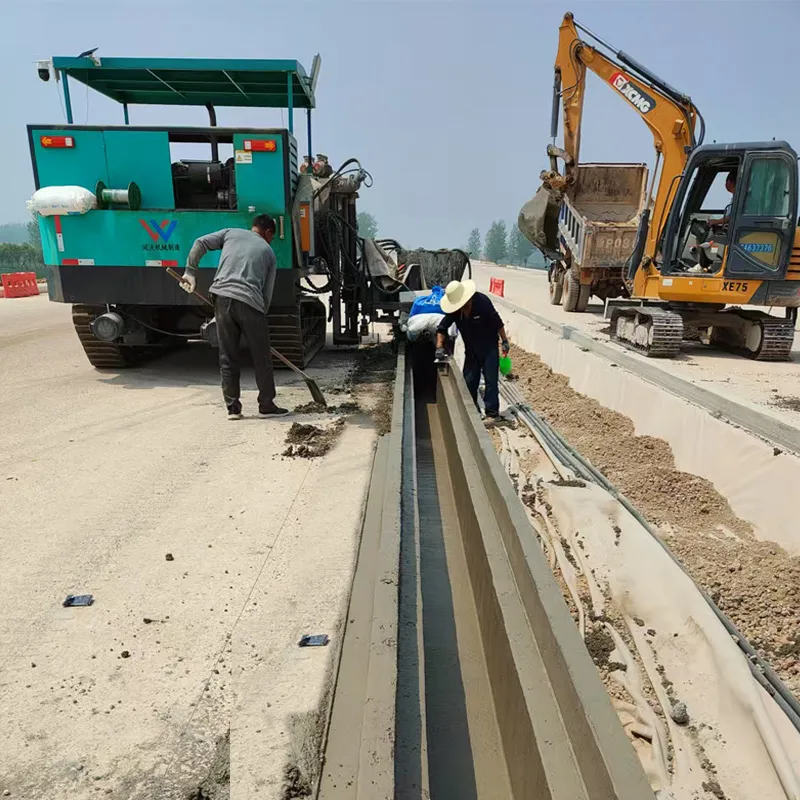

Drainage ditch slipforming
Roadside shoulder construction
Highway and municipal road projects
Rural road infrastructure construction
Customized concrete profile forming
Key Selling Points
Enlarged upgraded crawler slipform machine
8.4-ton heavy-duty body
50kW generator
Wider crawler chassis with 400mm track width
High-frequency vibrator system for better concrete forming
Supports 800mm × 800mm concrete forming
Suitable for larger curb and drainage ditch projects
| Item | Specification |
|---|---|
| Model | RWSP50CK |
| Driving Mode | Dual motor, dual-control, dual-drive |
| Machine Weight | 8.4 tons |
| Forming Method | Vibratory forming |
| Canopy | Removable frame + soft fabric canopy |
| Working Speed | 0.5–6 m/min |
| Control Mode | Manual control box + wireless remote control |
| Feeding Method | Hydraulic screw feeder |
| Working Mode | Dual leveling instrument automatic control |
| Generator | 50 kW generator |
| Engine Starting Method | Electric start |
| Water Tank Capacity | 200 L |
| Diesel Tank Capacity | 180 L |
| Crawler Type | Rubber crawler with steel wire reinforcement for engineering use |
| Crawler Model | 400/90AH/82 |
| Driving Motor | 4 kW × 2 |
| Gearbox Type | None |
| Overall Dimensions | 6200 × 2550 × 3050 mm, excluding canopy height |
| Applicable Material | Concrete |
| Applicable Forming Size | 800 × 800 mm concrete forming; drainage ditch inner size 600 × 600 mm |
| Hopper Capacity | Approx. 1.5 m³ |
| Speed Regulation | Variable frequency stepless speed control |
| Engine | Turbocharged four-cylinder engine |
| Hydraulic Drive Mode | Oil pump motor directly drives oil pump, controlled by hydraulic solenoid valve |
| Oil Pump Motor | 15 kW direct-connected dedicated oil pump motor |
| Machine Cleaning | Equipped with high-pressure cleaning pump |
| Hydraulic Oil Tank Capacity | 180 L |
| Vibrator | 1-to-6 high-frequency vibrators + 2 groups of ordinary vibrators |
| Crawler Chassis Size | 3500 × 2400 mm, track width 400 mm |
