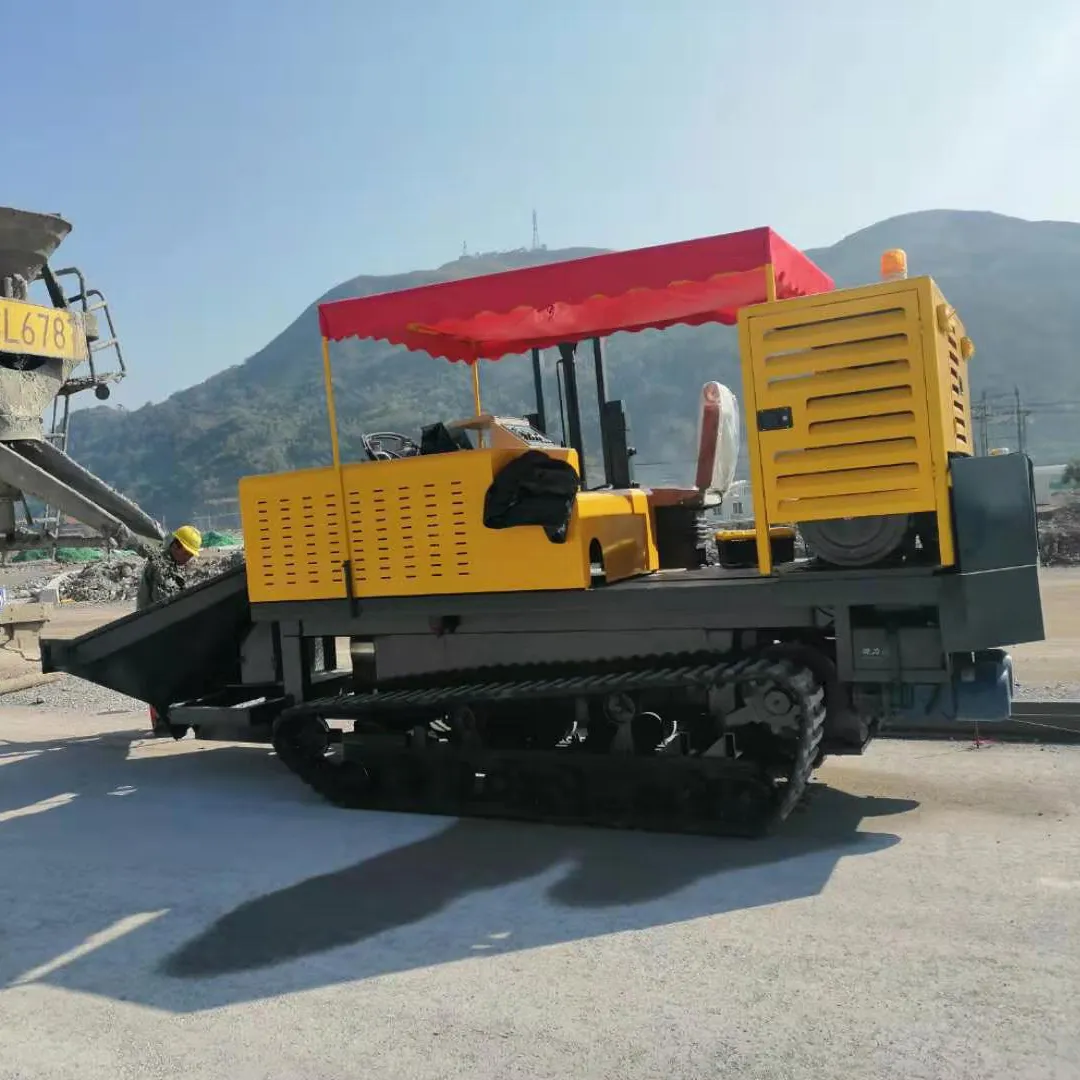

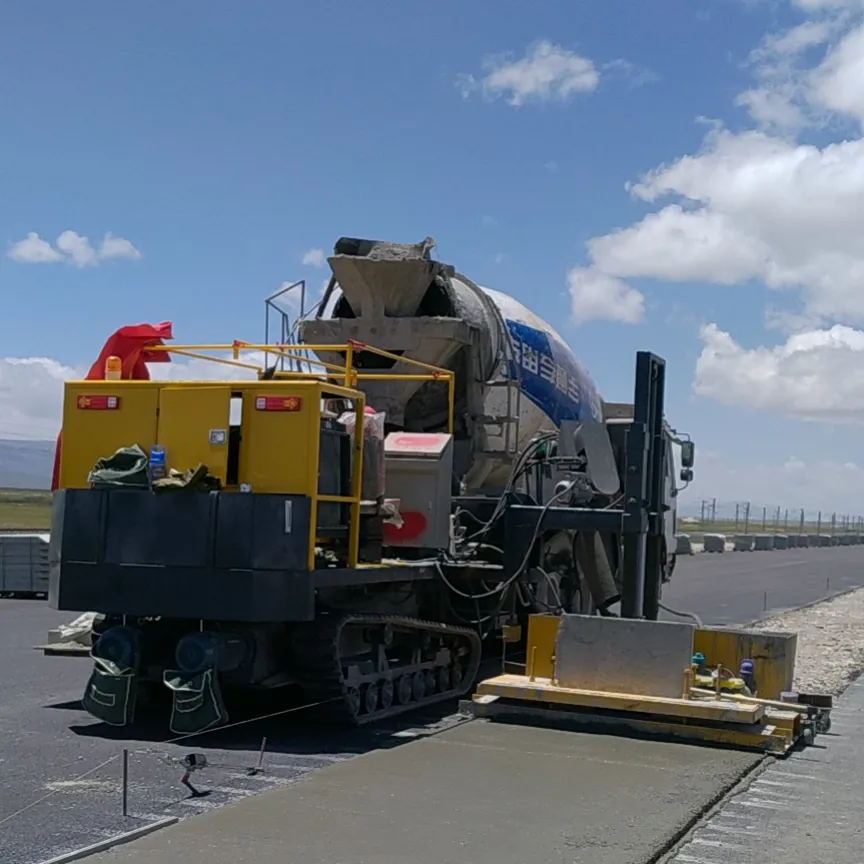

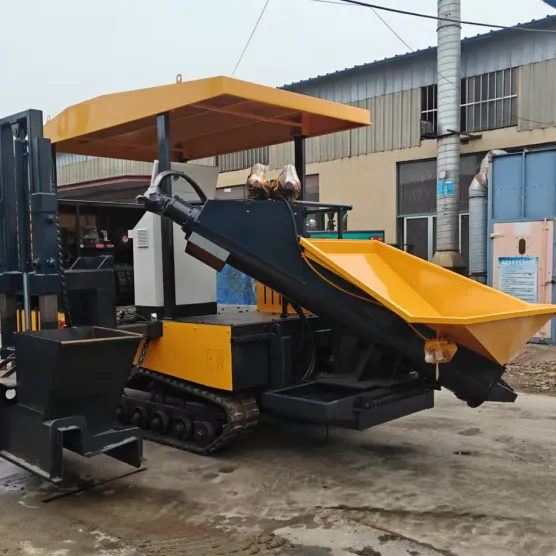

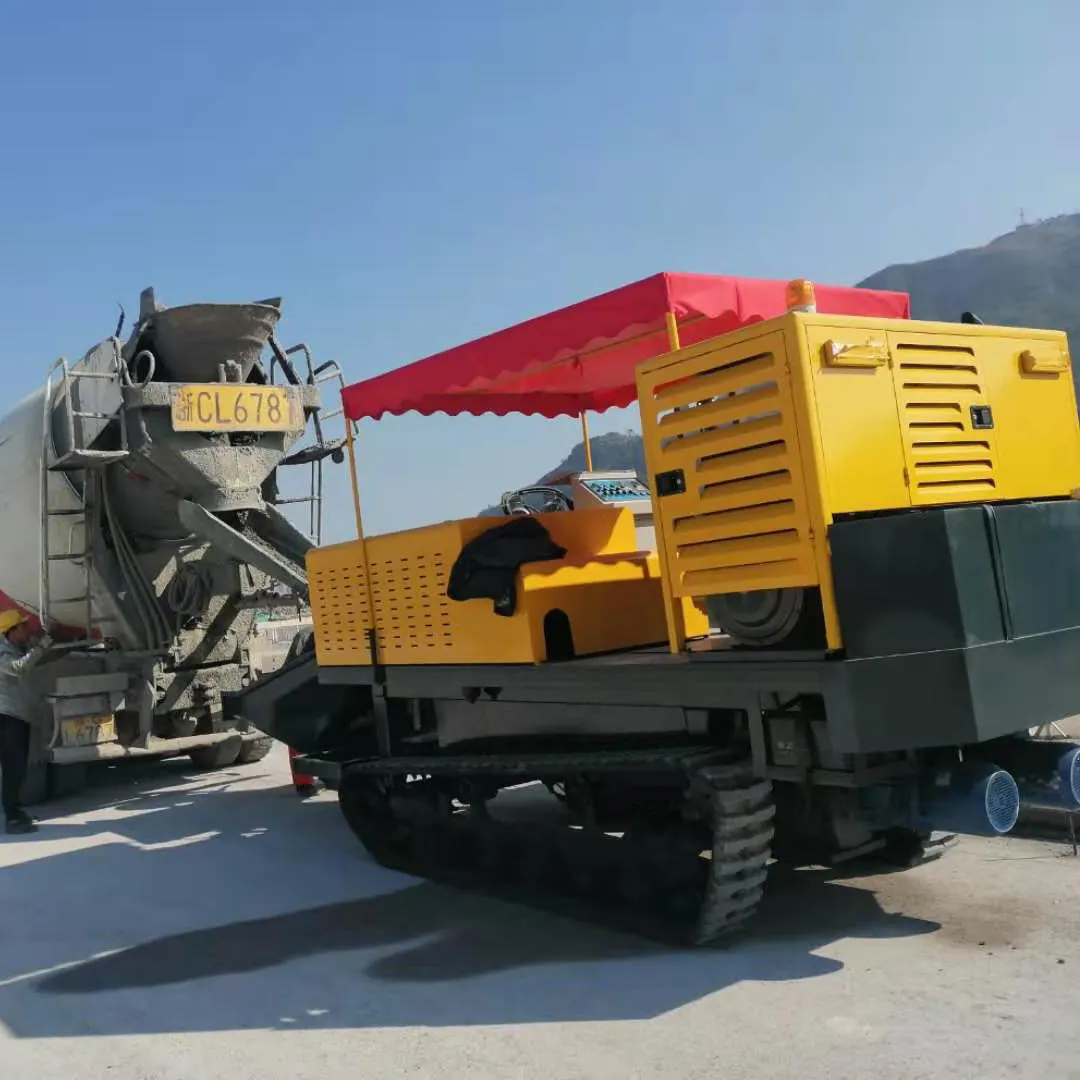

RWSP50C Rubber Crawler Concrete Slipform Paver
Product Overview
The RWSP50C Rubber Crawler Concrete Slipform Machine is a crawler-type slipform machine designed for continuous concrete forming projects, including curbs, gutters, roadside structures and drainage ditch profiles. Compared with wheel-type models, the rubber crawler chassis provides stronger ground contact and better stability on construction sites.
With a 50kW generator, dual motor dual-control drive system, hydraulic screw feeder and dual leveling instrument automatic control, the RWSP50C is suitable for contractors and municipal engineering teams that need efficient concrete forming equipment for regular road construction and maintenance work.
Product Details
The RWSP50C uses a rubber crawler with steel wire reinforcement, designed for engineering applications. Its crawler chassis helps maintain stable operation during concrete slipforming, especially on uneven ground or longer continuous forming sections.
The machine adopts vibratory forming, manual control box, wireless remote control and variable frequency stepless speed regulation. The turbocharged four-cylinder engine and dedicated oil pump motor support stable hydraulic operation. It can be used with customized molds according to project drawings.
Key Applications
Concrete curb construction
Road gutter forming
Drainage ditch forming
Highway roadside concrete structures
Municipal road projects
Rural road construction and upgrading
Key Selling Points
Rubber crawler chassis for stable construction operation
50kW generator
Dual motor, dual-control, dual-drive system
Hydraulic screw feeder for continuous feeding
Wireless remote control and manual control box
Dual leveling instrument automatic control
Suitable for concrete forming within 600mm × 600mm, including drainage ditch outer size
| Item | Specification |
|---|---|
| Model | RWSP50C |
| Driving Mode | Dual motor, dual-control, dual-drive |
| Machine Weight | 4.8 tons, excluding mold |
| Forming Method | Vibratory forming |
| Canopy | Removable frame + soft fabric canopy |
| Working Speed | 0.5–6 m/min |
| Control Mode | Manual control box + wireless remote control |
| Feeding Method | Hydraulic screw feeder |
| Working Mode | Dual leveling instrument automatic control |
| Generator | 50 kW generator |
| Engine Starting Method | Electric start |
| Water Tank Capacity | 200 L |
| Diesel Tank Capacity | 240 L |
| Crawler Type | Rubber crawler with steel wire reinforcement for engineering use |
| Crawler Chassis Size | 2800 × 1800 mm, track width 320 mm |
| Driving Motor | 5.5 kW × 2 |
| Gearbox Type | None |
| Overall Dimensions | 5500 × 2650 × 3000 mm, excluding canopy height |
| Applicable Material | Concrete |
| Applicable Forming Size | Within 600 × 600 mm, including drainage ditch outer size |
| Hopper Capacity | Approx. 1.5 m³ |
| Speed Regulation | Variable frequency stepless speed control |
| Engine | Turbocharged four-cylinder engine |
| Hydraulic Drive Mode | Oil pump motor directly drives oil pump, controlled by hydraulic solenoid valve |
| Oil Pump Motor | 15 kW direct-connected dedicated oil pump motor |
| Machine Cleaning | Equipped with high-pressure cleaning pump |
| Hydraulic Oil Tank Capacity | 150 L |
| Crawler Model | 320/90AH/68 |
